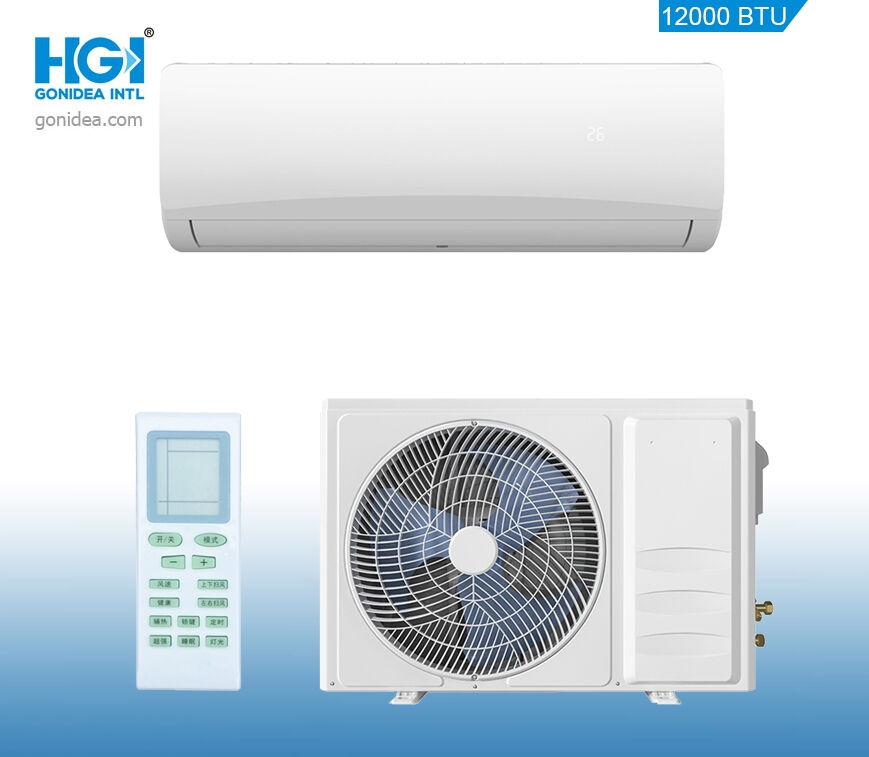

Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
  • Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
  • Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
  • Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
  • Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
  • Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11
Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11

Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11

Productdetails
Markeren:

wandgebouwde airconditioner 12000BTU

,

Inverterfrequentie-luchtconditioner met laag vermogen

,

Wandhangende wisselstroom-eenheid 110V

Betaling & het Verschepen Termijnen
Min. bestelaantal
100
Prijs
280
Productbeschrijving
Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner SP/J-35C11
Productbeschrijving
DC Vaste Frequentie SP/J-T35C6 SP/J-T35CH6 SP/J-T50CH6 SP/J-T70CH6
Nominale stroomvoorziening 1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz
Werkbare stroomvoorziening 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz
Koeling T3 Capaciteit (btu/uur) 12000 12000 18000 24000
Capaciteit (W) 3300 3300 4770 6180
Invoer (W) 1200 1200 1830 2290
Nominale stroom (A) 5.40 5.40 8.20 10.20
EER ((Btu/h/W/W) 9.38 9.38 8.89 9.21
EER ((W/W) 2.75 2.75 2.61 2.70
Verwarming Capaciteit (btu/uur) / 11200 18000 24000
Capaciteit (W) / 3300 5280 7000
Invoer (W) / 900 1560 2100
Nominale stroom (A) / 4.00 7.00 9.30
EER ((Btu/h/W/W) / 12.51 11.55 11.37
EER ((W/W) / 3.67 3.38 3.33
Maximaal inputverbruik (W) 1680 1680 2260 3000
Max. stroom (A) 8.6 8.6 11.6 14.6
Compressor Type Roterende Roterende Roterende Roterende
Merken GMCC, GREE GMCC, GREE GMCC, GREE GMCC, GREE
Innenruimte Innen spoel Vinnenmateriaal Gouden & hydrofiele Gouden & hydrofiele Gouden & hydrofiele Gouden & hydrofiele
Buitenste buis en materiaal φ7 mm, binnenste groeven φ7 mm, binnenste groeven φ7 mm, binnenste groeven φ7 mm, binnenste groeven
Inrichtingsluchtstroom (Turbo/Hi/Mi/Lo) (M3/h) 850/750/650/580 850/750/650/580 1050/950/800/680 1150/980/800/700
Nominale invoervermogen (koeling/verwarming) (W) 35 35 45 45
Nominale stroom (koeling/verwarming) (A) 0.35 0.35 0.4 0.4
Vochtverwijdering (kg/uur) 1.0 1.0 1.8 2.6
Het geluidsniveau ((Turbo/Hi/Mi/Lo) (dB ((A)) 43/39/37/33 43/39/37/33 45/42/39/37 49/47/45/42
Afmeting van de eenheid (W*H*D) 910*295*205 910*295*205 1075*330*240 1075*330*240
Verpakking (W*H*D) 975 * 340 * 255 975 * 340 * 255 1146*412*318 1146*412*318
Nettogewicht (kg) 11 11 15 15
Bruto gewicht (kg) 13 13 18 18
Buitenruimte Buitenspel Vinnenmateriaal Gouden & hydrofiele Gouden & hydrofiele Gouden & hydrofiele Gouden & hydrofiele
Buitenste buis en materiaal φ7 mm, binnengroeve φ7 mm, binnengroeve φ7 mm, binnengroeve φ7 mm, binnengroeve
Geluidsniveau (dB) 52 52 55 58
Afmeting van de eenheid (W*D*H) (mm) 760*305*550 760*305*550 850*385*700 900*395*700
Verpakking (W*D*H) (mm) 869*339*588 869*339*588 960*420*744 1033*439*733
Nettogewicht (kg) 29 30 43 46
Bruto gewicht (kg) 34 35 49 52
Type koelmiddel R410A R410A R410A R410A
Koelwaterpijp Vloeistofzijde (mm) Φ6 Φ6 Φ6 Φ6
Gaszijde (mm) Φ12 Φ12 Φ12 Φ15.88
Maximale lengte van de koelmiddelbuis (m) 10 10 10 15
Max. verschil in niveau (m) 5 5 5 10
Operatietemperatuurbereik 16oC tot 52oC -7°C tot 52°C -7°C tot 52°C -7°C tot 52°C
Omgevingstemperatuurbereik 16oC tot 55oC -7oC tot 55oC -7oC tot 55oC -7oC tot 55oC
Toepassingsgebied (MM2) 13 tot 28 13 tot 28 20 tot 40 30 tot 55
Set per 40ft HQ/20ft 40HQ/20 267/- 267/- 146/- 135/61
Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11 Modieus Wand Airconditioner Series 12000BTU 110V Low-Power Operation Inverter Frequency Airconditioner Sp/J-35c11

Markeringen:

Muur Hangende Airconditioner 220V 60Hz,

ODM muur die ac eenheden hangt,

muur opgezette ruimteairconditioner R410A
