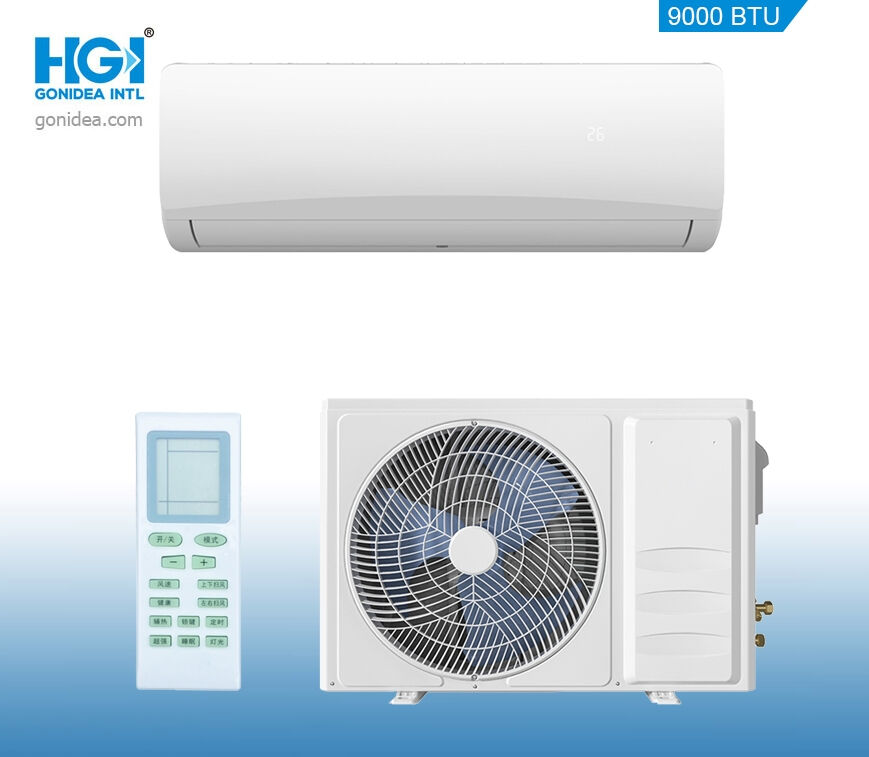

Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
  • Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
  • Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
  • Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
  • Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
  • Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH
Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH

Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH

Certificering CE, CCC, RoHS, GS, CB
Productdetails
Model-NR.:
SP/J-BP3A-26CH
Gebruik:
Kamer
Machinegeluid binnenshuis:
42/39/36/33
Chinese energie-efficiëntienorm:
Niveau 2
Koelen/Verwarmen:
Alleen koeling
Stroombron:
Elektrisch
Vermogenstype:
gelijkstroom
Voorwaarde:
Nieuw
Nominale voeding:
1pH / 220-240V/50Hz
Temperatuurbereik van de atie:
-7℃-43℃
Transportpakket:
Karton
Specificatie:
R410A
Handelsmerk:
HGI
Oorsprong:
China
HS-code:
8415102100
Productiecapaciteit:
500000/PCS per jaar
Markeren:

Wandgebouwde airconditioner 9000BTU

,

omvormer frequentie airconditioner laag vermogen

,

wandhangende airconditioner A+++

Betaling & het Verschepen Termijnen
Min. bestelaantal
100
Prijs
280
Productbeschrijving
Moderne Wandaircondition Serie 9000BTU A+++ Laag-Vermogen Inverter Frequentie Airconditioner SP/J-BP3A-26CH

Productomschrijving

DC INVERTER SP/J-BP3A-26CH SP/J-BP3A-35CH SP/J-BP3A-50CH SP/J-BP3A-70CH
Nominale voeding 1F / 220-240V/50Hz 1F / 220-240V/50Hz 1F / 220-240V/50Hz 1F / 220-240V/50Hz
Werkbare voeding 1F / 150-260V/50Hz 1F / 150-260V/50Hz 1F / 150-260V/50Hz 1F / 150-260V/50Hz
Koeling Capaciteit (btu/u) 9000 12000 18000 24000
Capaciteit (W) 2600(150~3200)W 3300(150~3900)W 5300(1200-6200) 7000(1500~8000)
Ingang (W) 630(60~1100)W 800(60~1400)W 1250(120-1700) 1760(135~2250)
Nominale stroom (A) 2.8 (0.3~4.9)A 3.6(0.3~6.3)A 5.6(1.3~7.5) 7.8(1.4~10.0)
Pdesign (W) 2600 3300 5200 7000
EER 8.50 8.50 9.35 8.90
Verwarming Capaciteit (btu/u) 9000 12000 18000 24000
Capaciteit (W) 2800(150~3800)W 3500(150~4500)W 5800(1250-6600) 7500(1500~9000)
Ingang (W) 730(60~1100)W 900(60~1400)W 1500(160-1850) 2050(170~2850)
Nominale stroom (A) 3.3(0.3~4.9) 4.0(0.3~6.3)A 6.6(1.5~8.2) 9.2(1.6~12.5)
Pdesign (W) 2450 2550 4550 5600
COP 4.60 4.60 4.8 4.60
Max. ingangsvermogen (W) 1600 1720 2400 3050
Max. stroom (A) 8.00 9.00 11.00 13.70
Compressor Merk GMCC GMCC GMCC GMCC
Type Roterend Roterend Roterend Roterend
Binnenunit Binnenbatterij Lamellenmateriaal Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel
Buitendiameter en materiaal van de buis φ5mm, Binnen gegroefd φ7mm, Binnen gegroefd φ7mm, Binnen gegroefd φ7mm, Binnen gegroefd
Luchtstroom binnenunit (Turbo/Hoog/Midden/Laag) (M3/u) 600/500/450/400 650/550/500/450 1050/950/800/680 1200/1100/950/800
Nominaal ingangsvermogen (koeling/verwarming) (W) 30 30 35 45
Nominale stroom (koeling/verwarming) (A) 0.2 0.2 0.35 0.4
Vochtafvoer (KG/u) 1.2 1.2 1.8 2.6
Geluidsniveau (Turbo/Hoog/Midden/Laag) (dB(A)) 42/39/36/33 42/39/36/33 47/44/41/39 49/47/45/42
Afmetingen unit (B*H*D) 810*295*205 810*295*205 955x335x230 1075*330*240
Verpakking (B*H*D) 875*340*255 875*340*255 1020*400*300 1146*412*318
Nettogewicht (KG) 8 8 12 15
Brutogewicht (KG) 10 10 14 18
Buitenunit Buitenbatterij Lamellenmateriaal Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel
Buitendiameter en materiaal van de buis φ7mm, Binnen gegroefd φ7mm, Binnen gegroefd φ7mm, Binnen gegroefd φ7mm, Binnen gegroefd
Geluidsniveau (dB) 50 52 55 59
Afmetingen unit (B*D*H) (mm) 710*295*495 730*305*550 850*385*700 920*425*795
Verpakking (B*D*H) (mm) 818*328*530 835*340*580 960*420*744 1050*475*845
Nettogewicht (KG) 23 23.5 38 46
Brutogewicht (KG) 26 26.5 42 50
Type koelmiddel R32 R32 R32 R32
Leiding koelmiddel Vloeistofzijde (mm) φ6 φ6 φ6 φ6
Gaszijde (mm) φ9 φ9 φ12 φ15.88
Max. lengte leiding koelmiddel (m) 10 10 10 15
Max. hoogteverschil (m) 5 5 5 10
Bedrijfstemperatuurbereik -7℃-43℃ -7℃-43℃ -7℃-43℃ -7℃-43℃
Omgevingstemperatuurbereik -15℃-48℃ -15℃-48℃ -15℃-48℃ -15℃-48℃
Toepassingsgebied (MM2) 10~17 13~27 20~40 30~55
Sets per 40ft HQ/20ft 40HQ/20 308 / - 286/124 160 / - 120 / -
Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH Modieus Wand Airconditioner Series 9000BTU a+++ Low-Power Operation Inverter Frequency Airconditioner Sp/J-Bp3a-26CH

Markeringen:

Muur Hangende Airconditioner 220V 60Hz,

ODM muur die ac eenheden hangt,

muur opgezette ruimteairconditioner R410A
