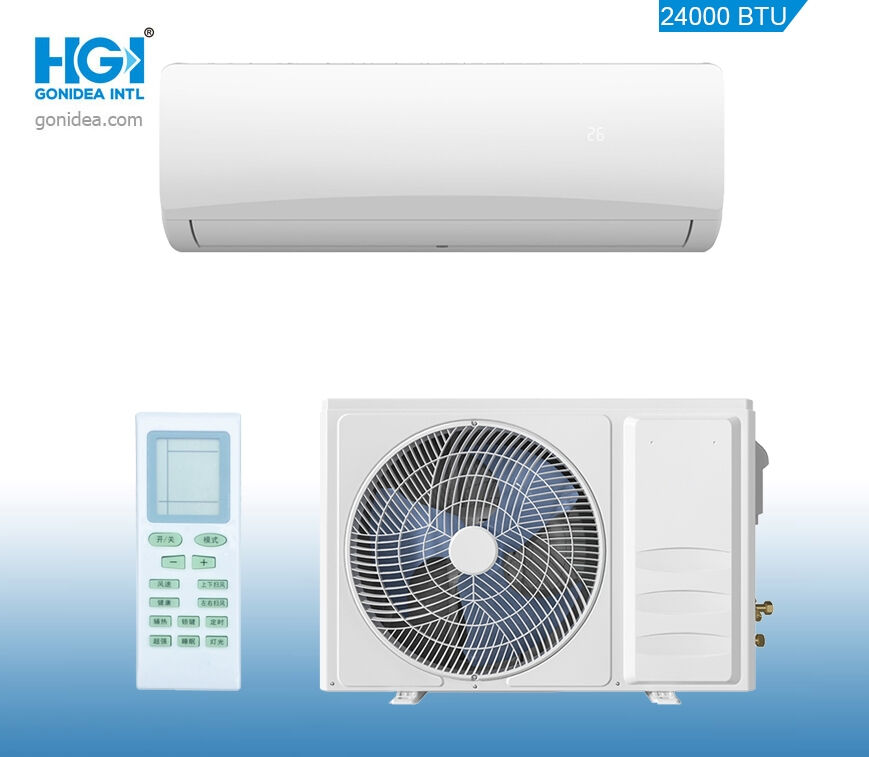

Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
  • Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
  • Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
  • Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
  • Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
  • Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6
Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6

Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6

Productdetails
Markeren:

Wandgebouwde airconditioner 24000BTU

,

Inverter frequentie airconditioner T3

,

Wandhangend airconditioningapparaat met een laag vermogen

Betaling & het Verschepen Termijnen
Min. bestelaantal
100
Prijs
280
Productbeschrijving
Moderne Wandairconditioner Serie 24000BTU T3 Laag-vermogen Inverter Frequentie Airconditioner SP/J-T70CH6
Productomschrijving
DC VASTE FREQUENTIE SP/J-T35C6 SP/J-T35CH6 SP/J-T50CH6 SP/J-T70CH6
Nominale voeding 1Fase / 230V/60Hz 1Fase / 230V/60Hz 1Fase / 230V/60Hz 1Fase / 230V/60Hz
Werkbare voeding 1Fase / 198-264V/60Hz 1Fase / 198-264V/60Hz 1Fase / 198-264V/60Hz 1Fase / 198-264V/60Hz
Koeling T3 Capaciteit (btu/u) 12000 12000 18000 24000
Capaciteit (W) 3300 3300 4770 6180
Ingang (W) 1200 1200 1830 2290
Nominale stroom (A) 5.40 5.40 8.20 10.20
EER(Btu/u/W/W) 9.38 9.38 8.89 9.21
EER(W/W) 2.75 2.75 2.61 2.70
Verwarming Capaciteit (btu/u) / 11200 18000 24000
Capaciteit (W) / 3300 5280 7000
Ingang (W) / 900 1560 2100
Nominale stroom (A) / 4.00 7.00 9.30
EER(Btu/u/W/W) / 12.51 11.55 11.37
EER(W/W) / 3.67 3.38 3.33
Max. ingangsverbruik (W) 1680 1680 2260 3000
Max. stroom (A) 8.6 8.6 11.6 14.6
Compressor Type Roterend Roterend Roterend Roterend
Merk GMCC,GREE GMCC,GREE GMCC,GREE GMCC,GREE
Binnenunit Binnenbatterij Materiaal lamellen Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel
Buitendiameter en materiaal buis φ7mm, binnen gegroefd φ7mm, binnen gegroefd φ7mm, binnen gegroefd φ7mm, binnen gegroefd
Luchtstroom binnenunit (Turbo/Hoog/Midden/Laag) (M3/u) 850/750/650/580 850/750/650/580 1050/950/800/680 1150/980/800/700
Nominaal ingangsvermogen (koeling/verwarming) (W) 35 35 45 45
Nominale stroom (koeling/verwarming) (A) 0.35 0.35 0.4 0.4
Vochtafvoer (KG/u) 1.0 1.0 1.8 2.6
Geluidsniveau (Turbo/Hoog/Midden/Laag) (dB(A)) 43/39/37/33 43/39/37/33 45/42/39/37 49/47/45/42
Afmetingen unit (B*H*D) 910*295*205 910*295*205 1075*330*240 1075*330*240
Verpakking (B*H*D) 975*340*255 975*340*255 1146*412*318 1146*412*318
Nettogewicht (KG) 11 11 15 15
Brutogewicht (KG) 13 13 18 18
Buitenunit Buitenbatterij Materiaal lamellen Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel Goud & hydrofiel
Buitendiameter en materiaal buis φ7mm, binnen gegroefd φ7mm, binnen gegroefd φ7mm, binnen gegroefd φ7mm, binnen gegroefd
Geluidsniveau (dB) 52 52 55 58
Afmetingen unit (B*D*H) (mm) 760*305*550 760*305*550 850*385*700 900*395*700
Verpakking (B*D*H) (mm) 869*339*588 869*339*588 960*420*744 1033*439*733
Nettogewicht (KG) 29 30 43 46
Brutogewicht (KG) 34 35 49 52
Koelmiddel type R410A R410A R410A R410A
Koelmiddelleiding Vloeistofzijde (mm) Φ6 Φ6 Φ6 Φ6
Gaszijde (mm) Φ12 Φ12 Φ12 Φ15.88
Max. lengte koelmiddelleiding (m) 10 10 10 15
Max. hoogteverschil (m) 5 5 5 10
Bedrijfstemperatuurbereik 16ºC-52ºC -7ºC-52ºC -7ºC-52ºC -7ºC-52ºC
Omgevingstemperatuurbereik 16ºC-55ºC -7ºC-55ºC -7ºC-55ºC -7ºC-55ºC
Toepassingsgebied (MM2) 13~28 13~28 20~40 30~55
Sets per 40ft HQ/20ft 40HQ/20 267/- 267/- 146/- 135/61
Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6 Modieus Wand Airconditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Airconditioner Sp/J-T70CH6

Markeringen:

Muur Hangende Airconditioner 220V 60Hz,

ODM muur die ac eenheden hangt,

muur opgezette ruimteairconditioner R410A
